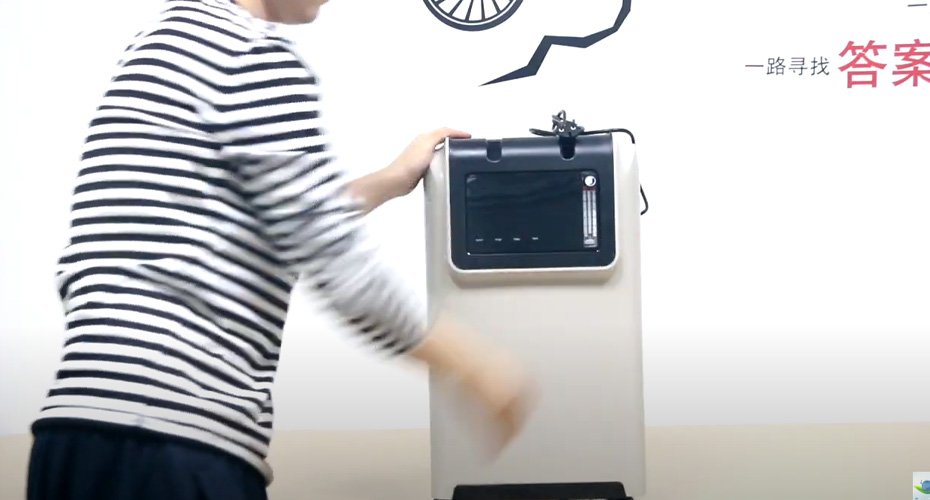

Oxygen Concentrator

YS-800 single flow

Last Next

Introduction

Features：

1.High/Low pressure alarm

2. Power off alarm

3. Low oxygen purity alarm

4. Power loss alarm

5. Current overload alarm

6. Timing function

7. LED display intelligent monitoring

8. Easy to move with handle and wheel.

9.Long time working 24h/7days

Specification

No.	Item	Rating
1	Delivery Rate (Lower delivery rates available for low application)	1 to 10 LPM
2	Outlet Pressure	＜ 60 kPa
3	Electrical Rating	220 V, 50 Hz/110 V,60Hz
4	Oxygen Percentage	93%±3%
5	Operating Environment Range	Temperature 5℃ to 40℃, Humidity 15% to 95% Atmospheric pressure 50~106 kpa (7.3~15.4 psi)
6	Weight	19.2kg
7	Sound Level ( ISO 8359:1996 from front )	≤55dbA
8	Dimensions	330mm(L) x320mm(W) x620mm(H)
9	Operating System	Time Cycle / Pressure Swing
10	Pressure Relief Valve	250 kPa±50 kPa

Accessories

Standard Accessories:

1× Oxygen Concentrator

1× Power cord

1× English User manual

1× Nasal cannula

1× Humidifier bottle
